Minimag 2800# Boat Lift

Product Description

The Mini Mag 2800 lb. Boat Lift was designed to be a user friendly solution to the problem of economically storing small boats.

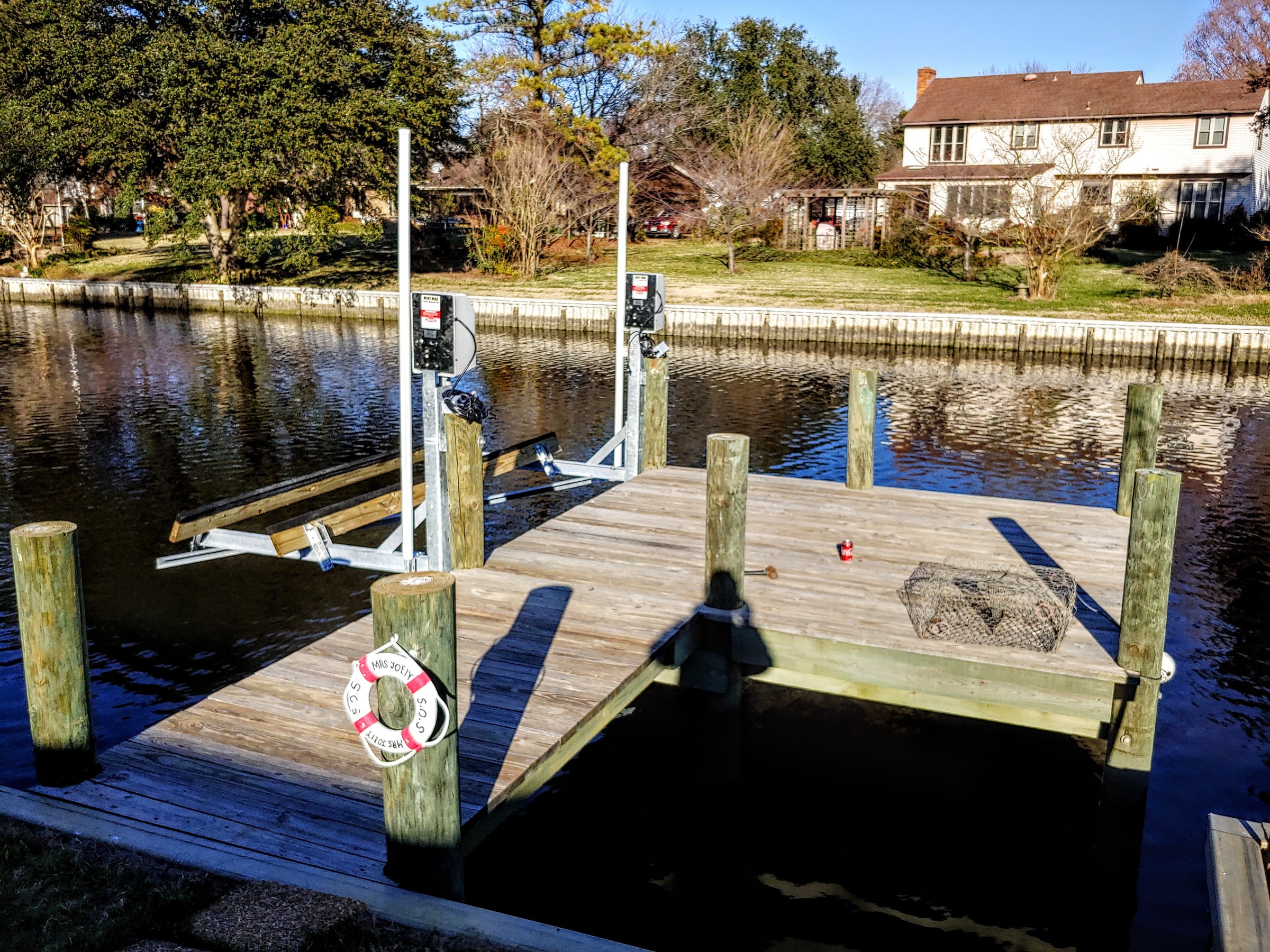

The 2800 attaches to two pilings along your dock or sea wall. Two powerful 3/4hp winches are utilized with our side mount lifts to raise and lower your craft leaving an open span between the motors. This low profile, open span design makes this lift easy to use.

The Mini Mag 2800’s tracks are secured to pilings with the supplied galvanized mounting hardware. The arms on our boat dock lifts travel through the tracks on polypropylene rollers and are raised and lowered by stainless steel cables. Carpeted runners (NOT INCLUDED) support and protect the bottom of your boat.

This Lift Comes Standard with 8' Tracks.  Please Click Here to Order Longer Tracks


Mini Mag 2800 Specifications:

                              CAPACITY                     2,800 lbs.
                              Arm Length                     72"
                              Travel Depth                     6' std., 8', 10' opt.
                              Required Power                     110 volt, 20 amp
                              Piling Spacing                     8' - 12' apart
                              Piling Diameter                     (2) 8" Diameter (Round)
                              Piling Height                     12" - 24" above the deck
                              Motors                     (2) 3/4HP with GFCI





$3,171.30
