AMS E-Gear

Product Description

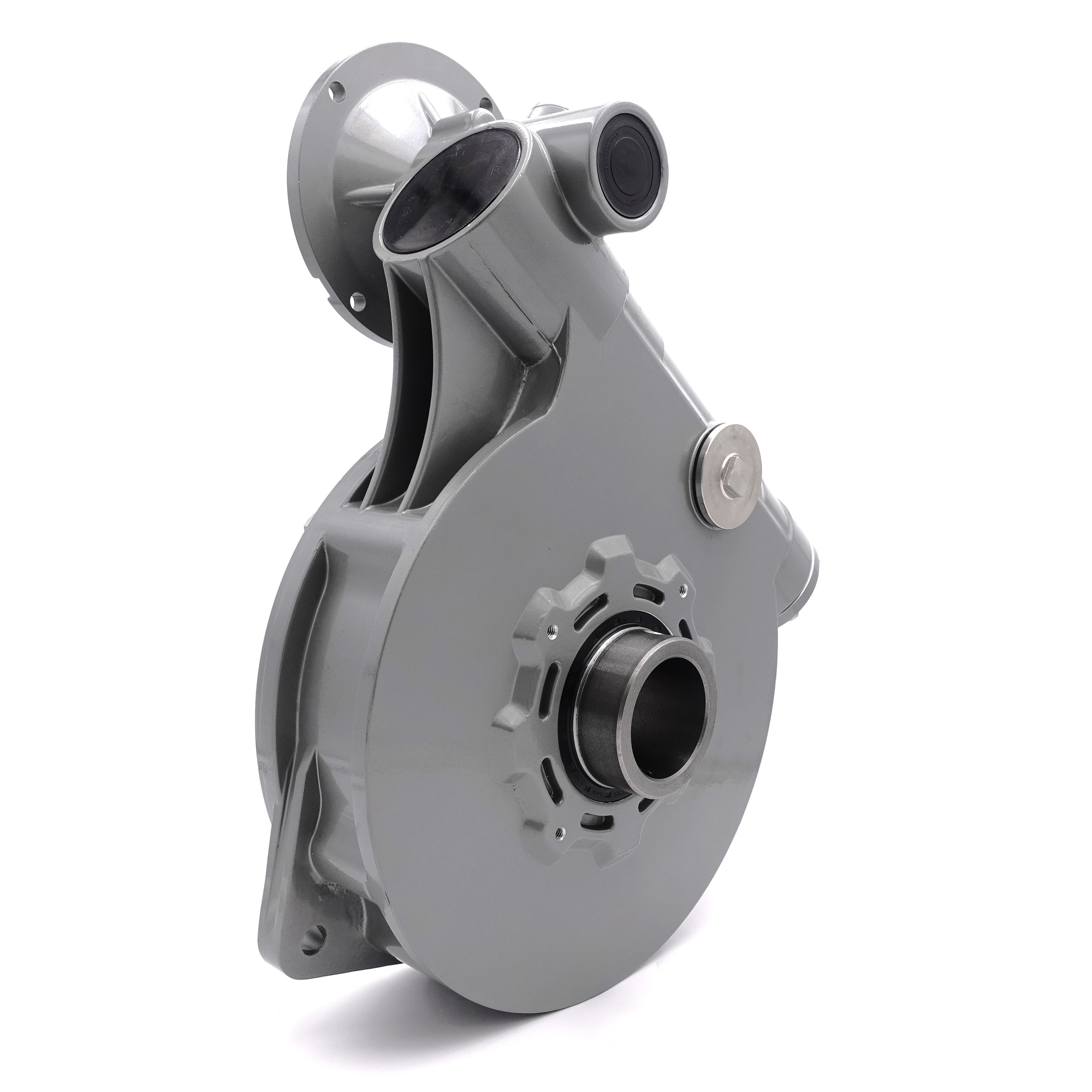

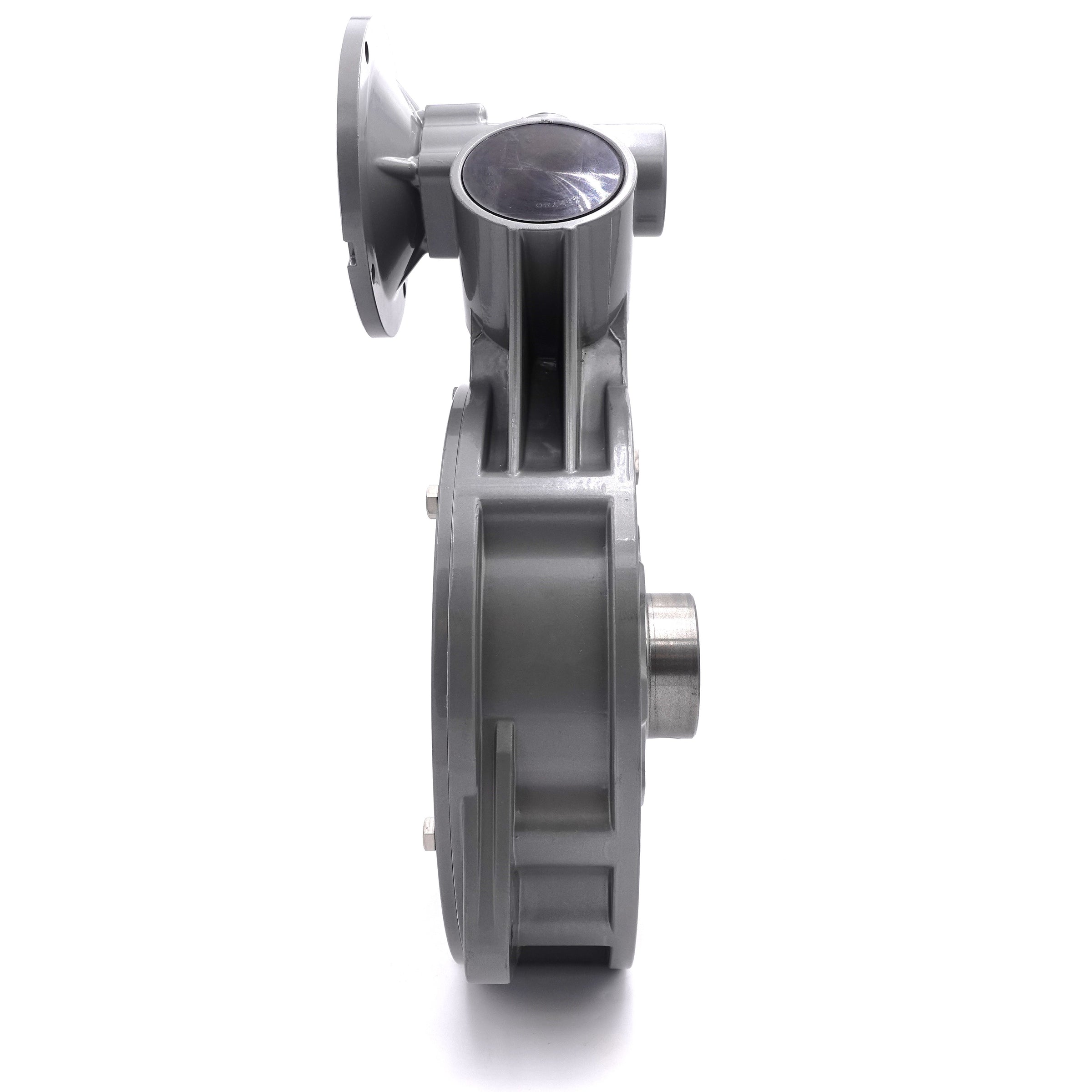

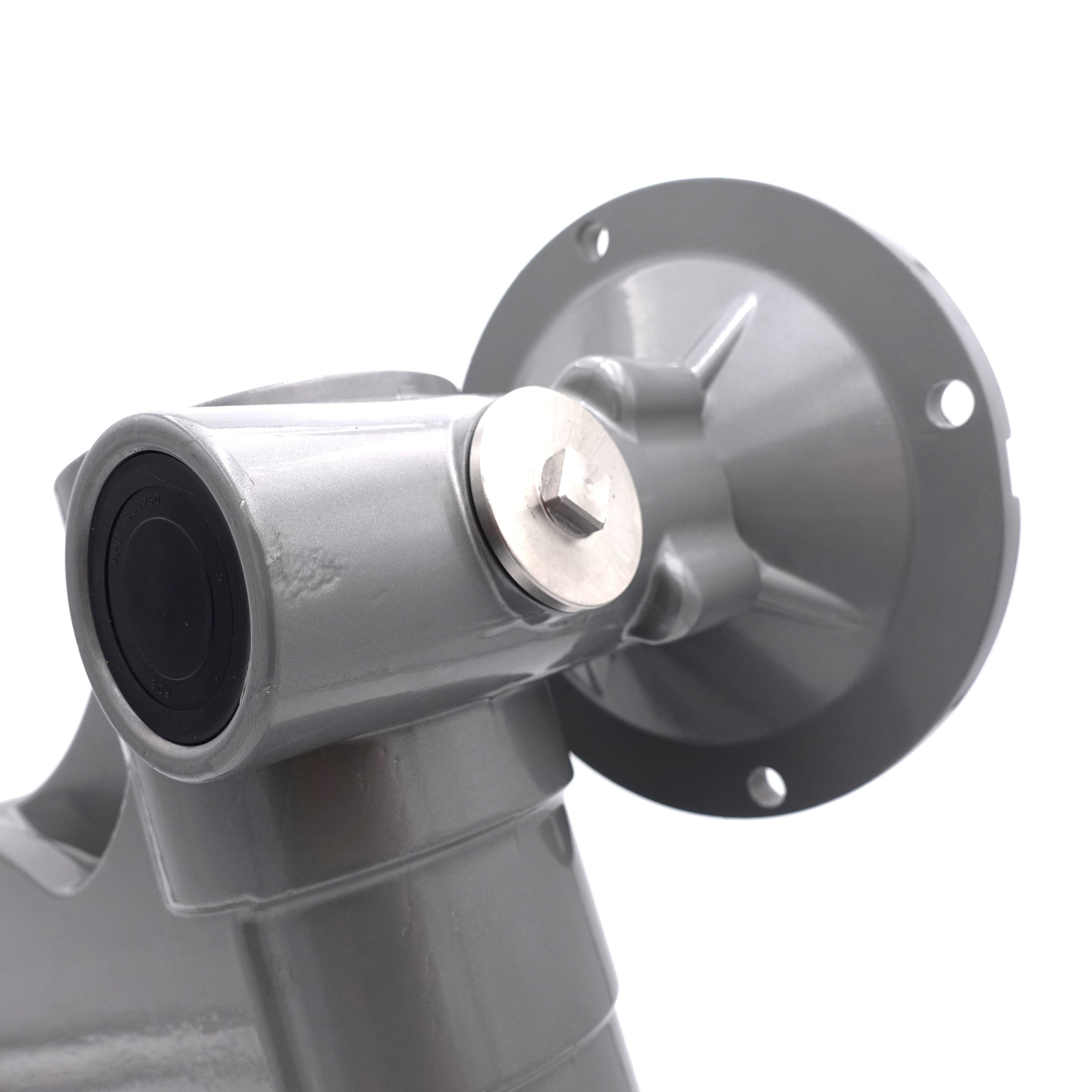

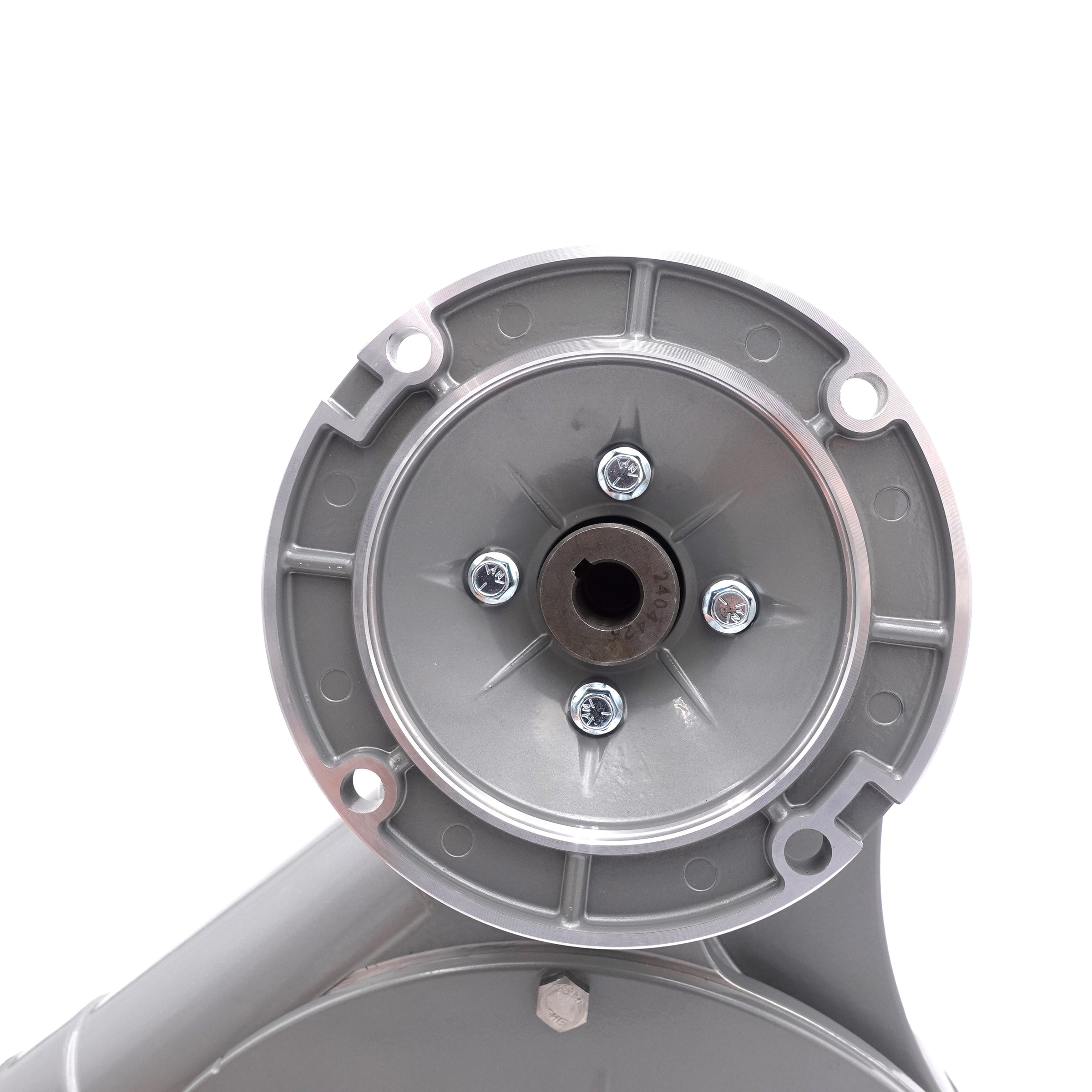

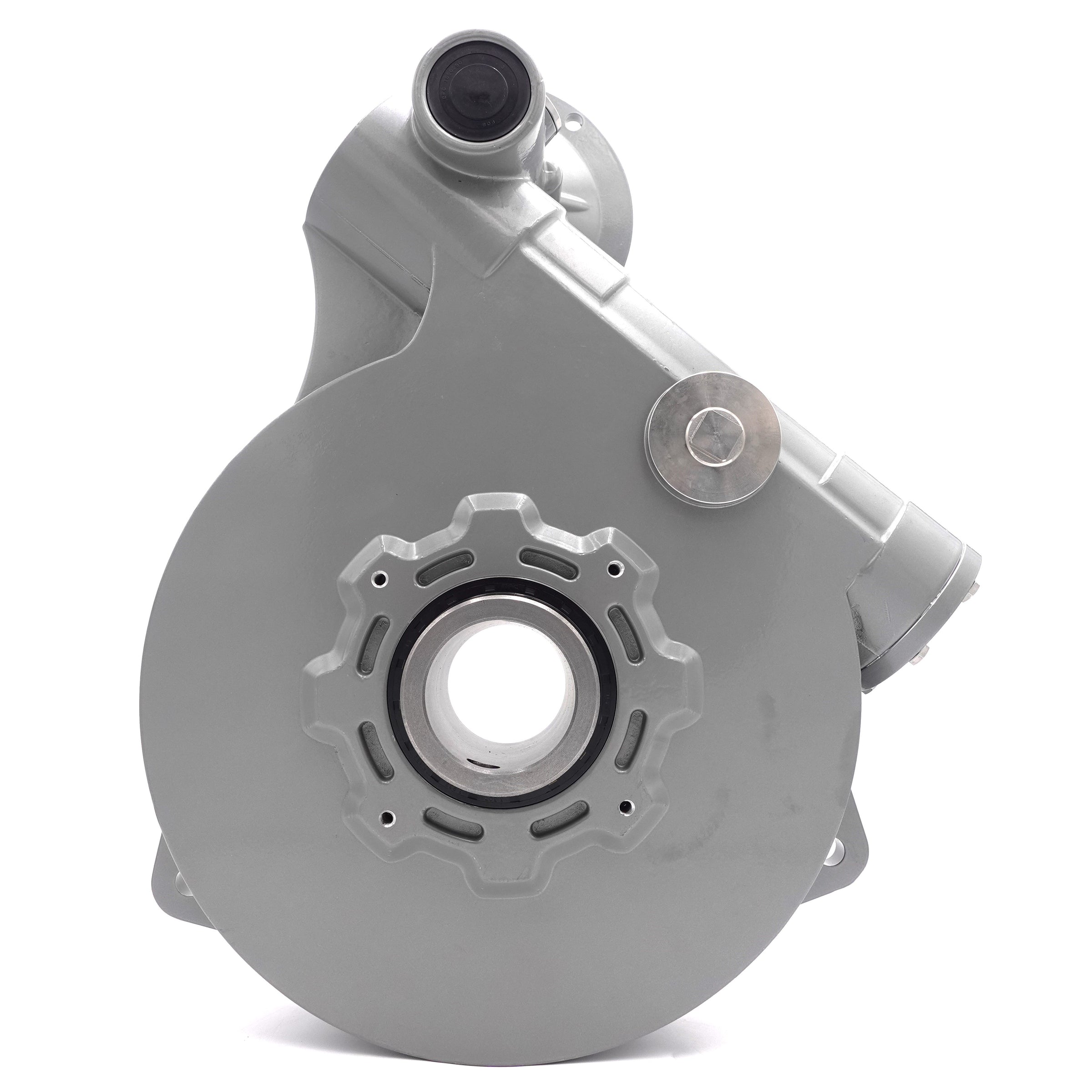

The E-Gear (totally enclosed, flat-plate lift system) is driven by a state of the art oil bath gear reducer. Our system incorporates the gear drive directly to the drive shaft, powered by either a 3/4hp, 1hp, or a 1 1/2hp motor.

General Specs


Flat Plate Gears
2000 LB Capacity
3000 LB Capacity
4000 LB Capacity
6500 LB Capacity
8500 LB Capacity
E-Drives
Jet Drive
3000LB Capacity 3/4 motor
4000LB Capacity  1motor
5000LB Capacity 1 HDmotor
6000LB Capacity 1.5 motor
7000 LB Capacity 1.5 motor
EBD Belt Drives
3000 LB Capacity
4000 LB Capacity
Vertical Lift Conversion Kit
PWC
1250 LB Capacity
1500 LB Capacity

Power Requirements

 30amp/120volt or 15amp/220volt
Gear Reduction Double worm gear 480:1 or 700:1
Switching GFI protected
Manual Bremas drum switch
Optional Remote Control
Motor General 3/4hp or 1hp A.O.Smith or 1 1/2hp motor
Motor Finish Options

Black enamel std.
Epoxy coated or Stainless steel optional



$1,493.67
