Lunmar Low Profile Cradle Kit Piling Mount (4200#, 5600#, 7000#)

Product Description

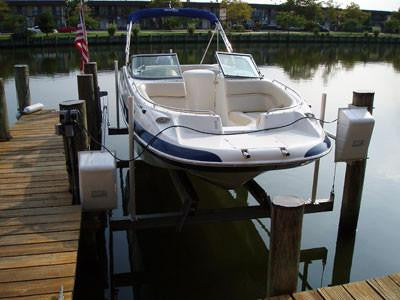

Lunmar Boat Lift Low Profile Piling Mount boat dock lifts are designed for boats that weigh less than 4200#, 5600#, or 7000# full of fuel and gear. Like the piling mount lifts, the low-profile piling mount attaches directly to 4 pilings and require no overhead structural beams. The pilings in our galvanized mount lift kits will support the entire load, therefore we recommend this be installed professionally. All parts on this boat lift are hot dipped galvanized for years of trouble-free operation.

 4200# Parts List:

  • (1) AMS 3000
  • (1) AMS 3000 with 25' Cord
  • (2) 102GS Strap Bearing
  • (2) 102GS Strap Bearing with Gearbox Mount
  • (2) Small Strut Bars
  • (2) 1/2" x 4" Galvanized Lag Bolts with Flat washers
  • (8) 834 Chock Brackets
  • (4) Low Profile Piling Mount Brackets
  • with 4" Sheaves and 5/8'' x 3'' GreaseZerk Bolts/Nuts/Locks/Flats
  • (4) 1/4" x 15' Stainless Steel Cable with Shackles
  • (12) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 5/8" x 14" Galvanized Carraige Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (4) 3/16" Stainless Steel Cable Clamps
  • (2) White Covers with S/S Clips and Bolts
  • (2) 6" x 10' Galvanized Cradle Beams



5600# Parts List:

  • (1) AMS 4000
  • (1) AMS 4000 with 25' Cord
  • (2) 102GS Strap Bearing
  • (2) 102GS Strap Bearing with Gearbox Mount
  • (2) Small Strut Bars
  • (2) 1/2" x 4" Galvanize Lag Bolts with Flat washers
  • (8) 834 Chock Brackets
  • (4) Low Profile Piling Mount Brackets
  • with 4" Sheaves and 5/8'' x 3'' GreaseZerk Bolts/Nuts/Locks/Flats
  • (4) 1/4" x 15' Stainless Steel Cable with Shackles
  • (12) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 5/8" x 14" Galvanized Carriage Bolts/Nuts/Locks/Flats
  • (8) 1/2" x Stainless Steel Cable Clamps
  • (2) White Covers with S/S Clips and Bolts
  • (2) 6" x 10' Galvanized Cradle Beams



7000# Parts List:

  • (1) AMS 4000
  • (1) AMS 4000 with 25' Cord
  • (2) 102GS Strap Bearing
  • (2) 102GS Strap Bearing with Gearbox Mount
  • (2) Small Strut Bars
  • (2) 1/2" x 4" Galvanized Lag Bolts with Flat washers
  • (8) 834 Chock Brackets
  • (4) Low Profile Piling Mount Brackets
  • with 4" Sheaves and 5/8'' x 3'' GreaseZerk Bolts/Nuts/Locks/Flats
  • (4) 5/16" x 15' Stainless Steel Cable with Shackles
  • (12) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 5/8" x 14" Galvanized Carriage Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (4) 3/16" Stainless Steel Cable Clamps
  • (2) White Covers with S/S Clips and Bolts
  • (2) 6" x 10' Galvanized Cradle Beams



10,000# Parts List:

  • (1) AMS 6500
  • (1) AMS 6500 with 25' Cord
  • (2) 102GS Strap Bearing
  • (2) 102GS Strap Bearing with Gearbox Mount
  • (2) Small Strut Bars
  • (2) 1/2" x 4" Galvanized Lag Bolts with Flat washers
  • (8) 834 Chock Brackets
  • (4) Low Profile Piling Mount Brackets
  • with 4" Sheaves and 5/8'' x 3'' GreaseZerk Bolts/Nuts/Locks/Flats
  • (4) 5/16" x 15' Stainless Steel Cable with Shackles
  • (18) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (12) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 5/8" x 14" Galvanized Carriage Bolts/Nuts/Locks/Flats
  • (8) 3/8" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (4) 3/16" Stainless Steel Cable Clamps
  • (2) White Covers with S/S Clips and Bolts
  • (2) 6" x 11' Galvanized Cradle Beams

Cradle Beam MUST be 1' Shorter than Inside to Inside Piling Spacing

Optional Upgrades: (Not Included)

240 Volt Motor Upgrade

$3,687.90
