Lunmar Cradle Kit Steel Mount Clamp Kit (3000#, 4000#, 6000#, 6500#)

Previous Product | Next Product

Product Description

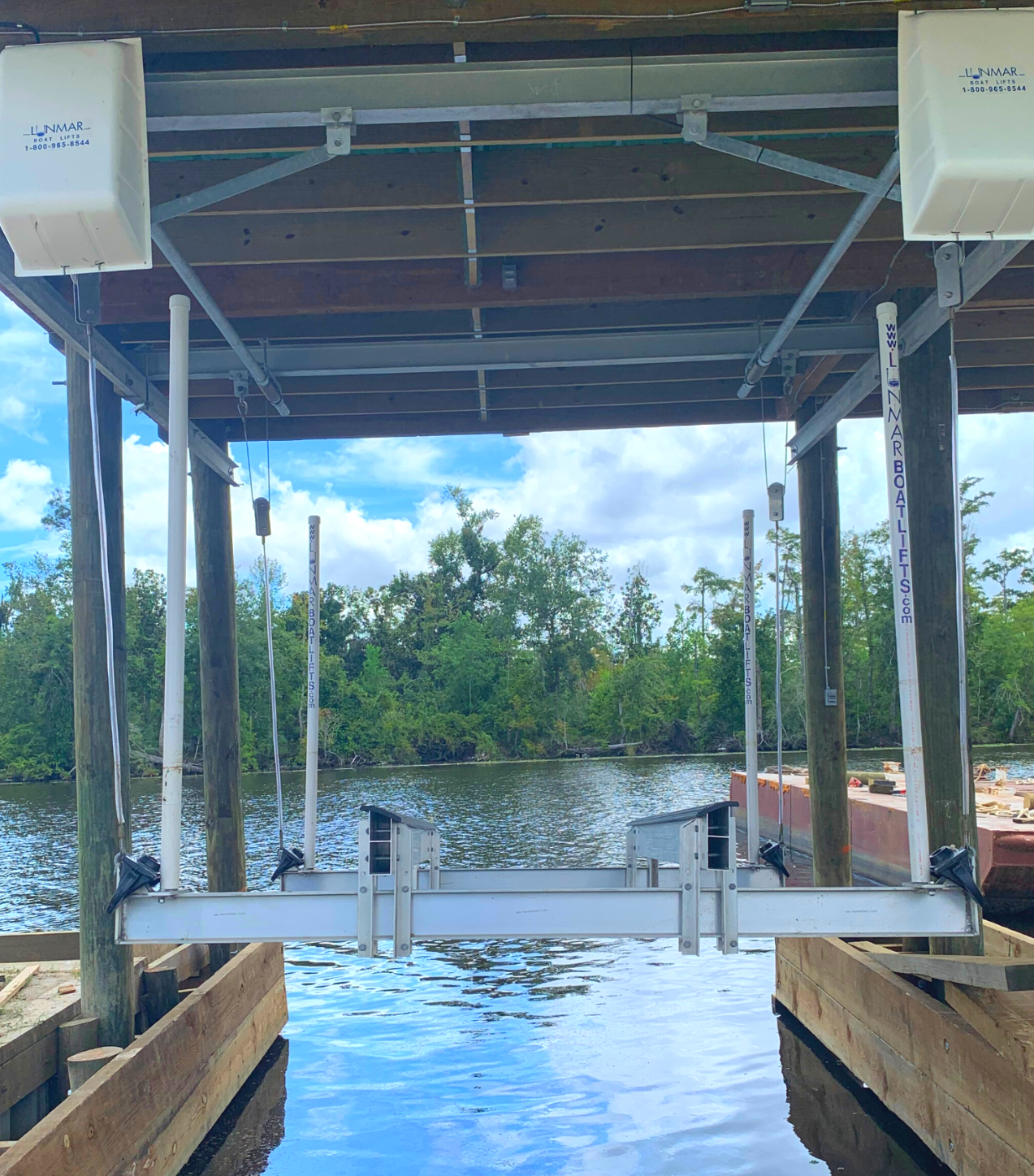

Lunmar Boat Lifts Steel Mount Clamp kits are available in Sling and Cradle Kits. The Steel Mount kits come with the (2) 13' Overhead Beams. These overhead beams are to be mounted on the beams running parallel to the boat. All parts are hot dipped galvanized for years of trouble-free operations. Also, Lunmar offers the highest quality boat lifts at the most affordable price.

Parts List 3000#:

(1) AMS 3000
(1) 102G Strap Bearing
(1) 102GB Strap Bearing w/ Gearbox Mount
(2) 102 BackPlates
(1) Strut Bar with Single Hole Clamp
(8) 834 Chock Brackets
(80') 1/4" Galvanized Cable
(2) 560 Pulleys with Single Hole Clamps
(6) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/4" Galvanized Cable Clamps
(4) Stainless Steel Thimbles
(2) 6" x 9' Galvanized Cradle Beams
(2) 6" x 13' Galvanized Overhead Beams

OPTIONAL PARTS: Stainless Steel Cable, Gearbox Cover, GEM 1 (remote control), Guidepost Brackets

Parts List 3000# Deluxe:

(1) AMS 3000 (motor, gear plate, switch, and GFCI)
(1) 102G Strap Bearing
(1) 102GB Strap Bearing w/ Gearbox Mount
(2) 102 Back Plates
(1) Strut Bar with Single Hole Clamp
(8) 834 Chock Brackets
(80') 1/4" Stainless Steel Cable
(2) 560 Pulleys with Single Hole Clamps
(6) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/4" Stainless Steel Cable Clamps
(4) Stainless Steel Thimbles
(2) 6" x 9' Galvanized Cradle Beams
(2) 6" x 13' Galvanized Overhead Beams
(1) Cover White w/SS Clips and Bolts

Parts List 4000#:

(1) AMS 4000
(1) 102G Strap Bearing
(1) 102GB Strap Bearing w/ Gearbox Mount
(2) 102 Back Plates
(1) Strut Bar with Single Hole Clamp
(8) 834 Chock Brackets
(80') 1/4" Galvanized Cable
(2) 560 Pulleys with Single Hole Clamps
(6) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/4" Galvanized Cable Clamps
(2) 6" x 9' Galvanized Cradle Beams
(2) 6" x 13' Galvanized Overhead Straight Beams

Parts List 4000# Deluxe:

(1) AMS 4000 (motor, gear plate, switch, and GFCI)
(1) 102G Strap Bearing
(1) 102GB Strap Bearing w/ Gearbox Mount
(2) 102 Back Plates
(1) Strut Bar with Single Hole Clamp
(8) 834 Chock Brackets
(80') 1/4" Stainless Steel Cable
(2) 560 Pulleys with Single Hole Clamps
(6) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/4" Stainless Steel Cable Clamps
(4) Stainless Steel Thimbles
(2) 6" x 9' Galvanized Cradle Beams
(2) 6" x 13' Galvanized Overhead Beams
(1) Cover White w/SS Clips and Bolts

Parts List 6000#:

(1) AMS 3000
(1) 102G Strap Bearing
(1) 102GB Strap Bearing w/ Gearbox Mount
(2) 102 Back Plates
(4) 1/2" x 8" Galvanized Hex Bolts/Nuts/Locks/Flats
(1) Strut Bar with Single Hole Clamp
(8) 834 Chock Brackets
(140') 1/4" Galvanized Cable
(2) 560 Pulleys with Double Hole Clamps
(2) Single Deadman Clamps
(4) 560 Pulleys
(6) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(7) 1/2" x 2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/4" Galvanized Cable Clamps
(4) Stainless Steel Thimbles
(2) 6" x 9' Galvanized Cradle Beams
(2) 6" x 13' Galvanized Overhead Beams

Parts List 6000# Deluxe:

(1) AMS 3000
(1) 102G Strap Bearing
(1) 102GB Strap Bearing w/ Gearbox Mount
(2) 102 Back Plates
(4) 1/2" x 8" Galvanized Hex Bolts/Nuts/Locks/Flats
(1) Strut Bar with Single Hole Clamp
(8) 834 Chock Brackets
(140') 1/4" Stainless Steel Cable
(2) 560 Pulleys with Double Hole Clamps
(2) Single Deadman Clamps
(4) 560 Pulleys
(6) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(7) 1/2" x 2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/4" Stainless Steel Cable Clamps
(4) Stainless Steel Thimbles
(4) Cable Guideposts with 1/2" Shackles
(2) 6" x 9' Galvanized Cradle Beams
(2) 6" x 13' Galvanized Overhead Beams
(1) Cover White w/SS Clips and Bolts

Parts List 6500#:

(1) AMS 6500
(2) 102G Strap Bearing
(2) Back Plates
(8) 834 Chock Brackets
(90') 1/4" Stainless Steel Cable
(4) 560 Pulleys with Single Hole Clamps
(6) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 5 1/2" Galvanized Bolts/Nuts/Locks/Flats
(8) 1/4" Stainless Steel Cable Clamps
(4) Stainless Steel Thimbles
(2) 6" x 10' Galvanized Cradle Beams
(2) 6" x 13' Galvanized Overhead Beams

Parts List 7500#:

(1) AMS 3000
(1) AMS 3000 with 25' Cord
(2) 102G Strap Bearing
(2) 102GB Strap Bearing w/ Gearbox Mount
(4) 102 Back Plates
(8) 1/2" x 8" Galvanized Hex Bolts/Nuts/Locks/Flats
(2) Strut Bar with Single Hole Clamp
(2) Angles
(1) 1/2" x 5" Galvanized Hex Bolt/Nut/Lock/Flat
(4) 1/4" x 25' Stainless Steel Cable with Shackles
(4) 560 Pulleys
(4) Flange Clamp - 4" - Single Hole
(8) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/4" Stainless Steel Cable Clamps
(4) 3/16" Stainless Steel Cable Clamps
(2) 6" x 9' Galvanized Cradle Beams
(8) 834 Chock Brackets
(8) 1/2" x 5" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 3/8" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(4) Cable Guideposts with Shackles
(2) 6" x 13'4" Galvanized Overhead Beams
(2) White Cover w/SS Clips and Bolts

ADDITIONAL PARTS (NOT INCLUDED) REQUIRED

(1) 2" ID Schedule 40 Galvanized Drive Pipe
(2) 2 x 10 x 14 Rough Cut Treated Bunk Boards
(14) 1/2" Galvanized Bolts/Nuts/Locks/Flats

Optional Upgrades: (Not Included)

240 Volt Motor Upgrade
