Lunmar Cradle Kit Steel Mount (3000#, 4000#, 6000#, 7500#, 10000#)

Previous Product
Product Description

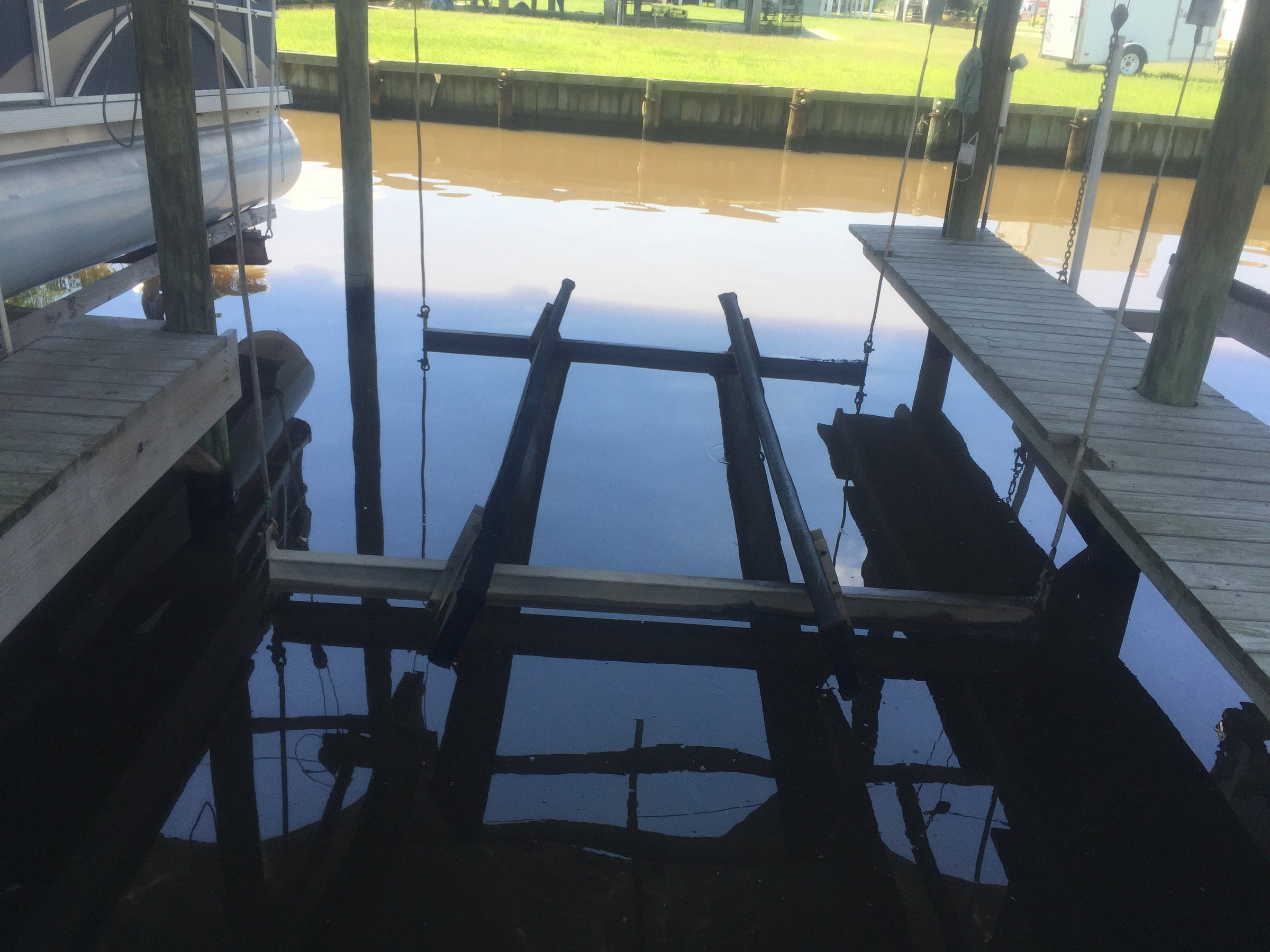

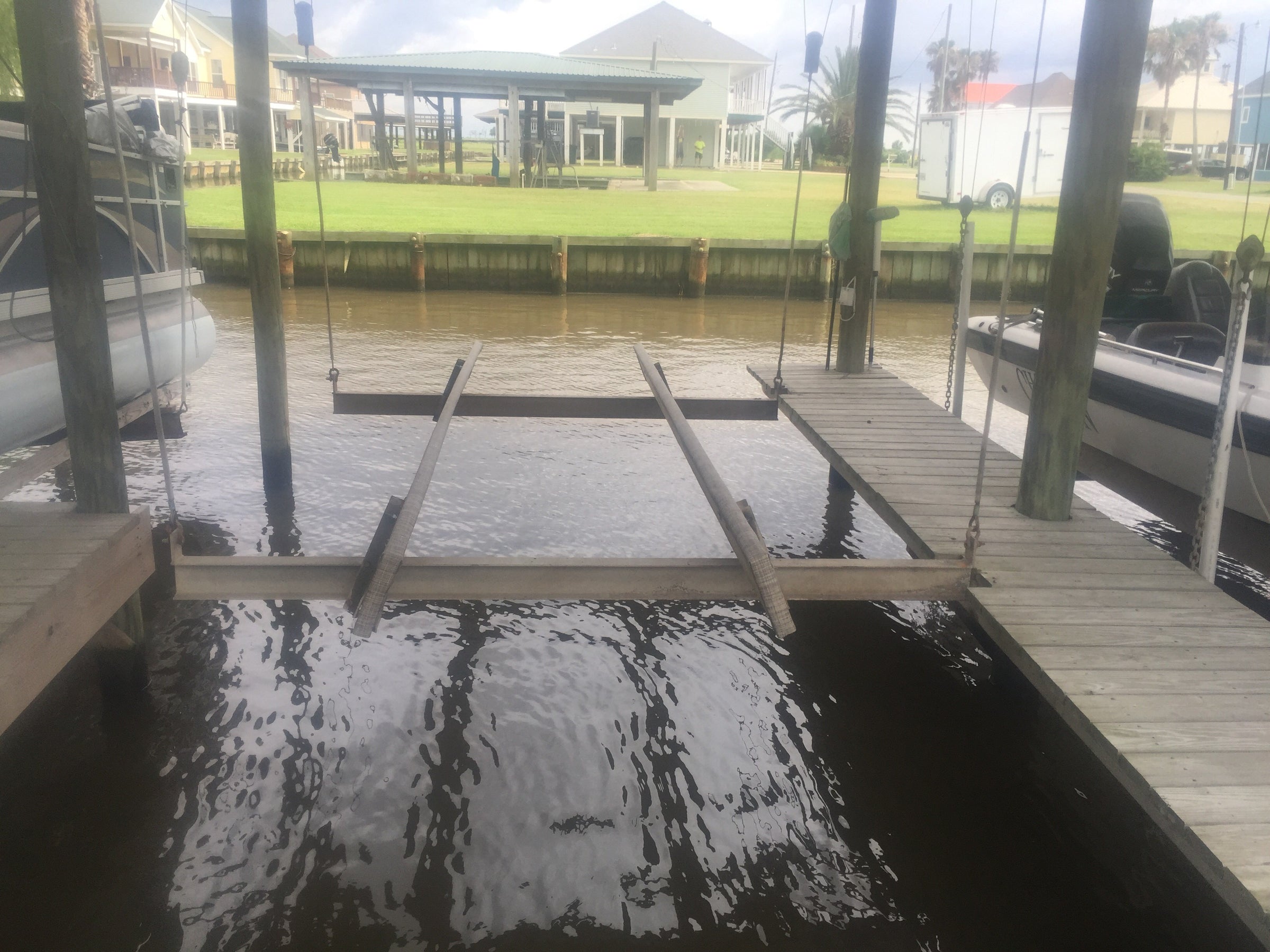

Lunmar Boat Lifts Steel Mount kits are available in Sling and Cradle Kits. The Steel Mount kits come with the (2) 13' Overhead Beams. These overhead beams are to be mounted on the beams running parallel to the boat.  All parts are hot dipped galvanized for years of trouble-free operations. Also, Lunmar offers the highest quality boat lifts at the most affordable price.

Part List 3000#:

  • (1) AMS 3000
  • (2) 102G Strap Bearing
  • (8) 834 Chock Brackets
  • (80') 1/4" Galvanized Cable
  • (2) 560 Pulleys
  • (6) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/4" Galvanized Cable Clamps
  • (4) Stainless Steel Thimbles
  • (2) 6" x 9' Galvanized Cradle Beams
  • (2) 6" x 13' Galvanized Overhead Beams

Parts List 3000# Deluxe:

  • (1) AMS 3000
  • (2) 102G Strap Bearing
  • (8) 834 Chock Brackets
  • (80') 1/4" Stainless Steel Cable
  • (2) 560 Pulleys
  • (6) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/4" Stainless Steel Cable Clamps
  • (4) Stainless Steel Thimbles
  • (2) 6" x 9' Galvanized Cradle Beams
  • (2) 6" x 13' Galvanized Overhead Beams
  • (1) Cover White w/SS Clips and Bolts



Part List 4000#:

  • (1) AMS 4000
  • (2) 102G Strap Bearing
  • (8) 834 Chock Brackets
  • (80') 1/4" Galvanized Cable
  • (2) 560 Pulleys
  • (6) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/4" Galvanized Cable Clamps
  • (4) Stainless Steel Thimbles
  • (2) 6" x 9' Galvanized Cradle Beams
  • (2) 6" x 13' Galvanized Overhead Beams

Parts List 4000# Deluxe:

  • (1) AMS 4000
  • (2) 102G Strap Bearing
  • (8) 834 Chock Brackets
  • (80') 1/4" Stainless Steel Cable
  • (2) 560 Pulleys
  • (6) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/4" Stainless Steel Cable Clamps
  • (4) Stainless Steel Thimbles
  • (2) 6" x 9' Galvanized Cradle Beams
  • (2) 6" x 13' Galvanized Overhead Beams
  • (1) Cover White w/SS Clips and Bolts



Parts List 6000#:

  • (1) AMS 3000
  • (2) 102G Strap Bearing
  • (8) 834 Chock Brackets
  • (140') 1/4" Galvanized Cable
  • (6) 560 Pulleys
  • (6) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/4" Galvanized Cable Clamps
  • (2) 6" x 9' Galvanized Cradle Beams
  • (2) 6" x 13' Galvanized Overhead Beams

Parts List 6000# Deluxe:

  • (1) AMS 3000
  • (2) 102G Strap Bearing
  • (8) 834 Chock Brackets
  • (140') 1/4" Stainless Steel Cable
  • (6) 560 Pulleys
  • (6) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/4" Stainless Steel Cable Clamps
  • (4) Cable Guidepost
  • (2) 6" x 9' Galvanized Cradle Beams
  • (2) 6" x 13' Galvanized Overhead Beams
  • (1) Cover White w/SS Clips and Bolts


Parts List 6500#:

  • (1) AMS 6500
  • (2) 102G Strap Bearing
  • (8) 834 Chock Brackets
  • (120') 1/4" Stainless Steel Cable
  • (2) 560 Pulleys
  • (6) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/4" Stainless Steel Cable Clamps
  • (4) Stainless Steel Thimbles
  • (2) 6" x 10' Galvanized Cradle Beams
  • (2) 6" x 13' Galvanized Overhead Beams



Parts List 7500#:

  • (1) AMS 3000
  • (1) AMS 3000 with 25' Cord
  • (4) 102G Strap Bearing
  • (8) 834 Chock Brackets
  • (4) 1/4" x 25' Galvanized Cable with Shackles
  • (4) Cable Guideposts
  • (4) 560 Pulleys
  • (8) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/4" Galvanized Cable Clamps
  • (4) 3/16" Galvanized Cable Clamps
  • (2) 6" x 9' Galvanized Cradle Beams
  • (2) 6" x 13'4" Galvanized Overhead Beams




 Parts List 10,000#:

  • (1) AMS 4000
  • (1) AMS 4000 with 25' Cord
  • (4) 102G Strap Bearing
  • (8) 834 Chock Brackets
  • (4) 5/16" x 25' Stainless Steel Cable with Shackles
  • (4) Cable Guideposts
  • (4) 560 Pulleys
  • (4) Deadman Hangers
  • (8) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
  • (8) 5/16" Stainless Steel Cable Clamps
  • (4) 3/16" Galvanized Cable Clamps
  • (2) 6" x 10' Galvanized Cradle Beams
  • (2) 6" x 13'4" Galvanized Overhead Beams



OPTIONAL PARTS: Stainless Steel Cable / Gearbox Cover / GEM 1 (remote control) / Guide Post Brackets / 240 Volt Motor Upgrade
