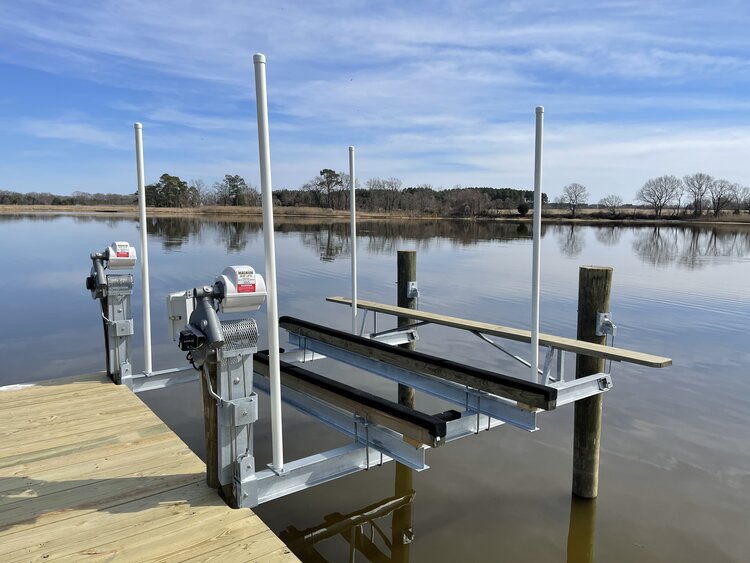

Magnum HD Lift (8000#,10,000#,12,500#,15,000#,20,000#,25,000#,30,000#,40,000#)

You can purchase galvanized mount lift kits online at Lunmar Boat Lifts. Our business carries a huge variety of boat dock lifts, including this amazing boat lift.

Capacity: 10,000#
Cradle Travel: 9' standard or 13' optional
Power: 110volts 20amps or 220volts 15amps
Piling Size: 8" diameter minimum
Piling Height Above Deck: 18" minimum

Capacity: 12,500#
Cradle Travel: 9' standard or 13' optional
Power: 110volts 20amps or 220volts 15amps
Piling Size: 8" diameter minimum
Piling Height Above Deck: 18" minimum

Capacity: 15,000#
Cradle Travel: 9' standard or 13' optional
Power: 110volts 20amps or 220 volts 15amps
Piling Size: 8" diameter minimum
Piling Height Above Deck: 18" minimum

Capacity: 20,000#
Cradle Travel: 9' standard or 15' optional
Power: (2) 110volts 30amps or (2) 220volts 30amps
Piling Size: 10" diameter
Piling Height Above Deck: 18" minimum
Distance between Piling WIDTH: 15'
Distance between Piling LENGTH: 15'

Capacity: 25,000#
Cradle Travel: 15' standard
Power: 220volts 40amps
Piling Size: (8) 12" diameter
Piling Height Above Deck: 4'
Distance Between Pilings WIDTH:  16'
LENGTH of hull supports: 16' -- 20'

Capacity: 30,000#
Cradle Travel: 15' standard
Power: 220volts 40amps
Piling Size: (8) 12" diameter
Piling Height Above Deck: 4'
Distance Between Pilings WIDTH: 16'
LENGTH of Hull Supports: 16' -- 20'

Capacity: 40,000#
Cradle Travel: 15' standard
Power: 220volts 40amps
Piling Size: (8) 12" diameter
Piling Height Above Deck: 4'
Distance Between Pilings WIDTH: 16'
LENGTH of Hull Support: 16' -- 20'
