Lunmar Cradle Kit Wood Mount (3000#, 4000#, 6000#, 6500#, 7500#, 10000#, 12500#, 15000#)

Previous Product | Next Product

Product Description

The Lunmar Cradle Kit Boat Lifts mount to existing overhead wood beams in a boat slip. These kits are some of the more affordable PCW lifts on the market today. These kits were designed to be easily installed by the homeowner. All parts are hot dipped galvanized for years of trouble-free operation. Each boat lift comes with an installation guide to help with installation.

*CLICK HERE FOR INSTALLATION GUIDE*

Parts List 3000#:

(1) AMS 3000 (Motor / Gear plate / Switch / GFCI)
(80') 1/4" Galvanized Cable
(2) 102G Strap Bearings
(4) 108 Bearing Brackets
(2) 560L Pulleys
(4) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/4" Galvanized Cable Clamps
(4) Stainless Steel Thimbles
(8) 834 Chock Brackets
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(2) 6" x 9' Galvanized Cradle Beams

Parts List 3000# Deluxe:

(1) AMS 3000 (Motor / Gear plate / Switch / GFCI)
(2) 102G Strap Bearing
(4) 108 Bearing Brackets
(8) 834 Chock Brackets
(80') 1/4" Stainless Steel Cable
(2) 560L Pulleys
(4) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/4" Stainless Cable Clamps
(4) Stainless Steel Thimbles
(2) 6" x 9' Galvanized Cradle Beams
(1) Cover White w/SS Clips and Bolts

Parts List 4000#:

(1) AMS 4000 (Motor / Gear plate / Switch / GFCI)
(80') 1/4" Galvanized Cable
(2) 102G Strap Bearings
(4) 108 Bearing Brackets
(2) 560L Pulleys
(4) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/4" Galvanized Cable Clamps
(4) Stainless Steel Thimbles
(8) 834 Chock Brackets
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(2) 6" x 9' Galvanized Cradle Beams

Parts List 4000# Deluxe:

(1) AMS 4000 (Motor / Gear plate / Switch / GFCI)
(80') 1/4" Stainless Steel Cable
(2) 102G Strap Bearings
(4) 108 Bearing Brackets
(2) 560L Pulleys
(4) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/4" Stainless Steel Cable Clamps
(4) Stainless Steel Thimbles
(8) 834 Chock Brackets
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(2) 6" x 9' Galvanized Cradle Beams
(1) White Motor Cover with Hardware

Parts List 6000#:

(1) AMS 3000 (Motor / Gearplate / Switch / GFCI)
(140') 1/4" Galvanized Cable
(2) 102G Strap Bearings
(4) 108 Bearing Brackets
(2) 560L Pulleys
(4) 560 Pulleys
(4) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/4" Galvanized Cable Clamps
(8) 834 Chock Brackets
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(2) 6" x 9' Galvanized Cradle Beams

Parts List 6000# Deluxe:

(1) AMS 3000 (Motor / Gear plate / Switch / GFCI)
(140') 1/4" Stainless Steel Cable
(2) 102G Strap Bearings
(4) 108 Bearing Brackets
(2) 560L Pulleys
(4) 560 Pulleys
(4) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/4" Stainless Steel Cable Clamps
(4) Cable Guideposts with 1/2" Shackles
(8) 834 Chock Brackets
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(2) 6" x 9' Galvanized Cradle Beams
(1) White Motor Cover with Hardware

Parts List 6500#:

(1) AMS 6500 (Motor / Gear plate / Switch / GFCI)
(2) 102G Strap Bearing
(4) 108 Bearing Brackets
(8) 834 Chock Brackets
(80') 1/4" Galvanized Cable
(2) 560L Pulleys
(4) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/4" Galvanized Cable Clamps
(4) Stainless Steel Thimbles
(2) 6" x 9' Galvanized Cradle Beams

Parts List 6500# Deluxe:

(1) AMS 6500
(2) 102G Strap Bearing
(4) 108 Bearing Brackets
(8) 834 Chock Brackets
(80') 1/4" Stainless Steel Cable
(2) 560L Pulleys
(4) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/4" Stainless Cable Clamps
(4) Stainless Steel Thimbles
(2) 6" x 9' Galvanized Cradle Beams
(1) Cover White w/SS Clips and Bolts

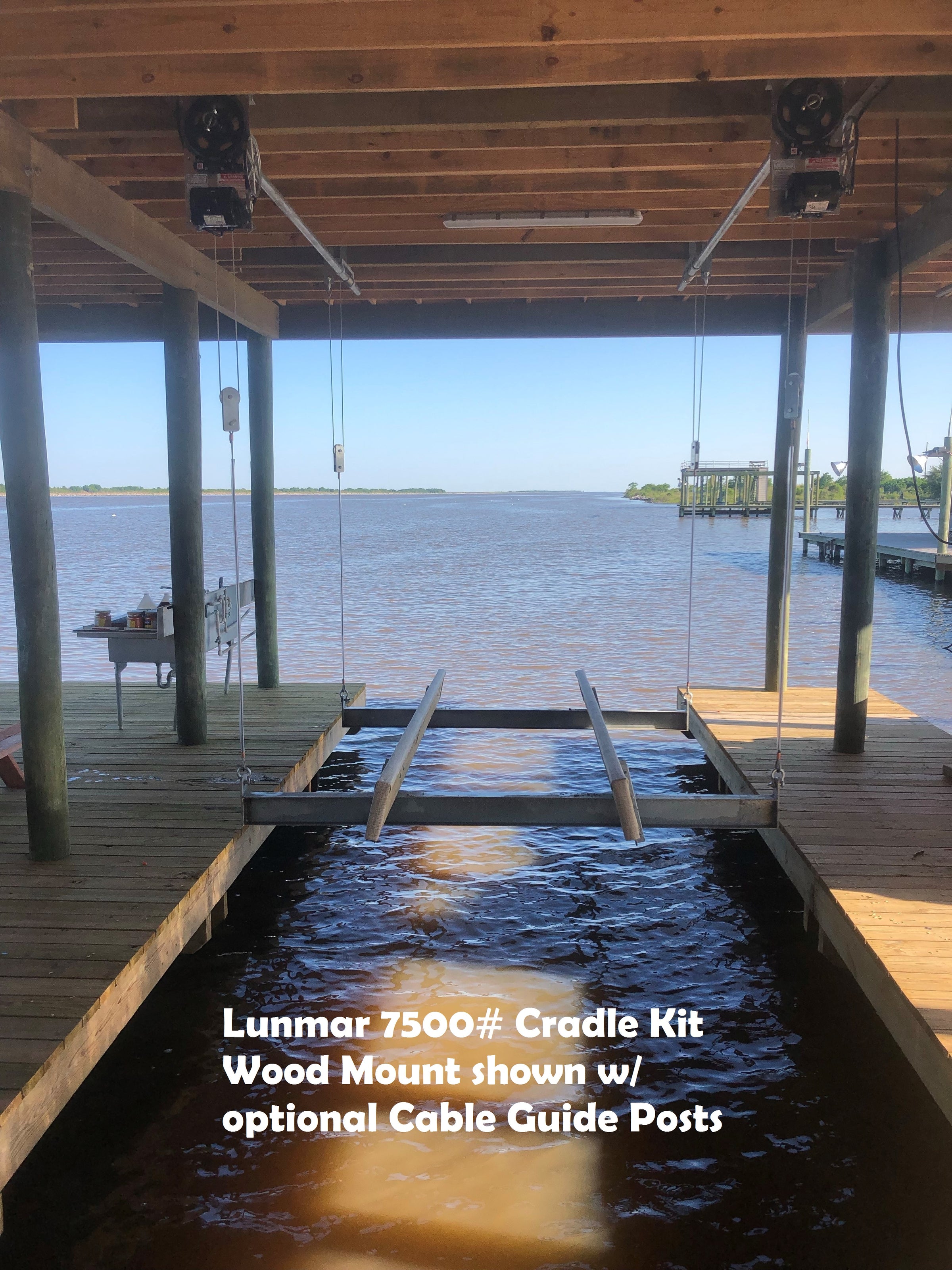

Parts List 7500#:

(2) AMS 3000 (Motor / Gear plate / Switch / GFCI)
(4) 1/4" x 25' Galvanized Cables with Shackles
(4) 102G Strap Bearings
(8) 108 Bearing Brackets
(4) 560 Pulleys
(8) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/4" Galvanized Cable Clamps
(4) 3/16" Galvanized Cable Clamps
(4) Deadman Hangers
(8) 834 Chock Brackets
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(4) Cable Guideposts
(2) 6" x 9' Galvanized Cradle Beams

Parts List 7500#:

(1) AMS 3000 (Motor / Gear plate / Switch / GFCI)
(1) AMS 3000 Motor with 25' Cord
(4) 1/4" x 25' Stainless Steel Cables with Shackles
(4) 102G Strap Bearings
(8) 108 Bearing Brackets
(4) 560 Pulleys
(8) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/4" Stainless Steel Cable Clamps
(4) 3/16" Stainless Steel Cable Clamps
(4) Deadman Hangers
(8) 834 Chock Brackets
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 5 1/2'' Galvanized Hex Bolts/Nuts/Locks/Flats
(4) Cable Guideposts with Shackles
(2) 6" x 9' Galvanized Cradle Beams
(2) White Covers with Hardware

ADDITIONAL PARTS (NOT INCLUDED) REQUIRED

(2) 2" ID Schedule 40 Galvanized Drive Pipe
(10) 1/2" Galvanized Bolts/Nuts/Locks/Flats
(20) Wire Staples
(2) 3 x 10 x 16 Treated Bunk Boards
(2) 6" x 17' Carpet Strips
(1) Monel Staples

Lunmar Boat Lifts 10,000# Cradle kits for Wood Mount are designed to be mounted to wood overhead beams. This cradle kit and the 7500# are the ONLY cradle kits that do not allow the pulleys to get submerged in water due to the cable guide post. All parts for this boat lift are hot dipped galvanized for years of trouble free operations. These too are designed so that the home owner can install the lifts themselves. Lunmar offers the highest quality PCW lifts at the most affordable price.

Parts List 10,000#:

(2) AMS 4000 Motors & Gear plates (one with 25' wire)
(2)106W Motor Mounts
(8) 109W Sealed Bearings
(4) 110W Deadman Hangers
(2) Bushings
(8) 834 Chock Brackets
(4) Cable Guideposts
(4) 30' 5/16" Galvanized Cables with shackles
(2) 6" X 10' Cradle Beams
(2) White Covers with Stainless Steel Clips and Bolts
(4) 560 Pulleys
(4) 3/16" Galvanized Cable Clamps
(4) 1/2" X 1 1/2" Galvanized Hex Bolts/Locks/Flats/Nuts
(8) 1/2" X 4 1/2" Galvanized Hex Bolts/ Locks/Flats/Nuts
(8) 1/2" X 5 1/2" Galvanized Hex Bolts/ Locks/Flats/Nuts

***2" galvanized drive pipes NOT included***

Parts List 12,500#:

(1) AMS 6500
(1) AMS 6500 with 25' Cord
(2) 106W Gearbox Mounts
(8) 109W Sealed Bearings
(4) 110W Deadman Hangers
(2) Bushings
(8) 834 Chock Brackets
(4) 5/16" x 30' Stainless Steel Cable with Shackles
(4) Heavy Duty Cable Guide Posts
(2) White Covers with S/S Clips and Bolts
(4) 560 Pulleys
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(4) 5/8" Galvanized Shackles
(4) 3/16" Stainless Steel Cable Clamps
(28) 1/2" x 6" Galvanized Hex Bolts/Nuts/Locks/Flats
(2) 8" x 10' Galvanized Cradle Beams

Parts List 15,000#:

(1) AMS 8500
(1) AMS 8500 with 25' Cord
(8) Sealed Bearing (Wood)
(2) Gearbox Mount (Wood)
(4) 5/16'' x 30' Stainless Steel Cable with Shackle on End
(2) White Covers with Hardware
(4) Deadman Hangers
(4) 1/2" x 1 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(2) 8" x 10'6" Galvanized Cradle Beams
(8) 834 Chock Brackets
(4) 3/16" Stainless Steel Cable Clamps
(2) Bushings
(8) 1/2" x 5 1/2" Galvanized Hex Bolts/Nuts/Locks/Flats
(8) 1/2" x 4" Galvanized Hex Bolts/Nuts/Locks/Flats
(4) 560 Heavy Duty Pulleys
(4) Heavy Duty Cable Guideposts
(4) Cable Winders for 1 1/2" Pipe (Left Hand)

OPTIONAL UPGRADE PARTS: Wireless Remote Control / Stainless Steel Cable / Larger Beam Widths / White Motor Cover with Hardware / Guide Post Brackets / 240 Volt Motor Upgrade
