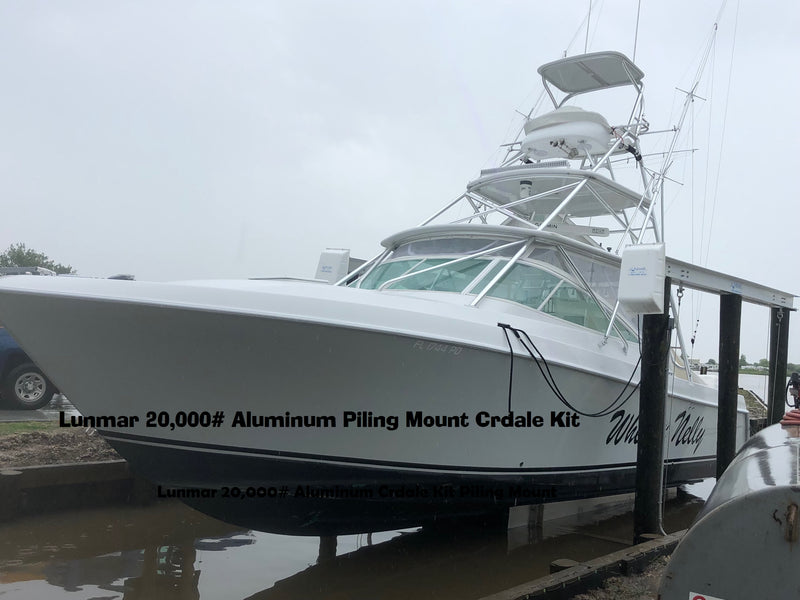

Lunmar Aluminum Cradle Kit Piling Mount (6,000#,8,000#,10,000#,12,500#,15,000#,20,000#,25,000#,30,000#)

Product Description

The Lunmar Aluminum Piling Mount Boat Lifts are designed to rest on top of 4 pilings typically 12' 6" apart center to center. These boat lifts feature optional shelf brackets if pilings extend to the roof. Installation is simple and constructed of marine grade aluminum. Our aluminum piling mount lifts are made in the USA and are available at great boat lift prices. They also come with sheaves attached to the cradle beams (except for the 6000).



*CLICK HERE FOR VIDEO*



Parts List 6000:

  • (2) AMS 4000 (motor, gearplate, switch, GFCI)
  • (4) 5/16" x 20' Stainless Steel Cable with Eyes
  • (2) 2" Bushings
  • (8) 834A Aluminum Chock Brackets
  • (4) Aluminum Guidepost Bracket (8) Tabs
  • (8) 1/2" x 4" Stainless Hex bolts/ nuts/ locks/ flats
  • (8) 1/2" x 5 1/2" Stainless Hex bolts/ nuts/ locks/ flats
  • (8) 1/2" x 12" Stainless Hex bolts/ nuts/ locks/ flats
  • (12) 1/2" x 2" Stainless Hex bolts/ nuts/ locks/ flats
  • (2) 8'' x 12' Aluminum Bunks with Rubber Pads
  • (2) 6'' x 12'6'' Aluminum Cradle Beams
  • (2) 12'6" x 6'' x .17 Aluminum Top Beams with (4) Bearing Brackets, 1 1/2" Drive Pipe, Gearbox Mount, Piling Mount Bracket, Cable Winders, and Winder Bolts
  • (2) White Covers with Hardware
  • (4) T-Brackets



Parts List 8000#:

  • (2) AMS 3000 (motor, gearplate, switch, GFCI)
  • (4) 5/16" x 30' Stainless Steel Cable with Eyes
  • (8) 834A Aluminum Chock Brackets
  • (2) 2" Bushings
  • (8) 1/2" x 4" Stainless Steel Hex bolts/ nuts/ locks/ flats
  • (8) 1/2" x 5 1/2" Stainless Steel Hex bolts/ nuts/ locks/ flats
  • (8) 1/2" x 12" Stainless Steel Hex bolts/ nuts/ locks/ flats
  • (12) 1/2" x 2" Stainless Steel Hex bolts/ nuts/ locks/ flats
  • (4) Aluminum Guidepost Brackets with (8) Tabs
  • (2) 6'' x 12'6'' Aluminum Cradle Beams
  • (2) 8'' x 12' Aluminum Bunks with Rubber Pads
  • (2) 12' 6" x 6'' x .17 Aluminum Top Beams with (4) Bearing Blocks, 1 1/2" Drive Pipe, Gearbox Mount, Piling Mount Bracket, Cable Winders, Winder Bolts, Deadman Plates
  • (2) White Covers with Hardware
  • (4) T-Brackets



Parts List 10,000#:

  • (2) AMS 3000 (motor, gearplate, switch, GFCI)
  • (4) 5/16" x 30' Stainless Steel Cable with Eyes
  • (8) 834A Aluminum Chock Brackets
  • (2) 2" Bushings
  • (8) 1/2" x 4" Stainless Steel Hex bolts/ nuts/ locks/ flats
  • (8) 1/2" x 5 1/2" Stainless Steel Hex bolts/ nuts/ locks/ flats
  • (8) 1/2" x 12"Stainless Steel Hex bolts/ nuts/ locks/ flats
  • (12) 1/2" x 2" Stainless Steel Hex bolts/ nuts/ locks/ flats
  • (4) Aluminum Guidepost Brackets with (8) Tabs
  • (2) 8'' x 12'6'' Aluminum Cradle Beams
  • (2) 8'' x 12' Aluminum Bunks with Rubber Pads
  • (2) 12' 6" x 6'' x .17Aluminum Top Beams with (4) Bearing Blocks, 1 1/2" Drive Pipe, Gearbox Mount, Piling Mount Bracket, Cable Winders, Winder Bolts, Deadman Plates
  • (2) White Covers with Hardware
  • (4) T-Brackets



Parts List 12,500:

  • (1) AMS 4000
  • (1) AMS 4000 with 25' Cord
  • (2) 12'6" x 8'' x .19 x 3 Aluminum Top Beams
  • (2) 12'6" x 8'' x .25 Aluminum Cradle Beams with 5/8 Aluminum Sheaves
  • (4) 5/16" x 35' Stainless Cables with Eye
  • (2) 5/8" x 12" Stainless Steel Hex Bolts/Nuts/Locks/Flats
  • (8) 834A Aluminum Chock Brackets
  • (8) 1/2" x 6 1/2" Stainless Steel Hex Bolts/Nuts/Locks/Flats
  • (4) Aluminum Guidepost Brackets
  • (8) Guidepost Tabs
  • (8) 1/2" x 2" Stainless Steel Hex Bolts/Nuts/Locks/Flats
  • (2) 8'' x 12' Aluminum Bunks with Pads
  • (2) 1 1/2 Drive pipe x 13'6"
  • (2) CW112lh
  • (2) CW112rh
  • (8) Bearing blocks
  • (32) 1/2'' x 1 1/2'' Stainless Steel Hex bolts/ locks/nuts
  • (4) Winder bolts
  • (4) Deadman hangers
  • (12) 1/2'' x 1 1/2'' Stainless Steel Hex bolts nuts locks flats.
  • (4) T-Brackets
  • (2) 2" Bushing
  • (2) White Covers with Hardware



Parts List 15,000#:

  • (2) AMS 4000 (motor, gearplate, switch, GFCI)
  • (4) 5/16" x 30' Stainless Steel Cable with Eyes
  • (8) 834A Aluminum Chock Brackets
  • (2) 2" Bushings
  • (8) 1/2" x 4" Stainless Steel Hex bolts/ nuts/ locks/ flats
  • (8) 1/2" x 6 1/2" Stainless Steel Hex bolts/ nuts/ locks/ flats
  • (8) 1/2" x 12" Stainless Steel Hex bolts/ nuts/ locks/ flats
  • (12) 1/2" x 2" Stainless Steel Hex bolts/ nuts/ locks/ flats
  • (4) Aluminum Guidepost Bracket with (8) Tabs
  • (2)10" X 12' 6" Aluminum Cradle Beams with Sheaves
  • (2)10'' x 16' Bunks with Rubber Pads
  • (2) 8" X 3'' X 15' Aluminum Top Beams with (4) Bearing Blocks, 1 1/2" Drive Pipe, Gearbox Mount, Piling Mount Bracket, Cable Winders, and Winder Bolts
  • (2) White Covers with Hardware
  • (4) T-Brackets



Parts List 20,000#:

  • (2) AMS 6500 (motor, gearplate, switch, GFCI)
  • (4) 5/16" x 30' Stainless Steel Cable with Eyes
  • (8) 834AXL Aluminum Chock Brackets
  • (2) 2" Bushings
  • (8) 1/2" x 4" Stainless Steel Hex bolts/ nuts/ locks/ flats
  • (8) 1/2" x 7 1/2" Stainless Steel Hex bolts/ nuts/ locks/ flats
  • (8) 1/2" x 12" Stainless Steel Hex bolts/ nuts/ locks/ flats
  • (12) 1/2" x 2" Stainless Steel Hex bolts/ nuts/ locks/ flats
  • (4) Aluminum Guidepost Bracket with (8) Tabs
  • (2) 10" X 15' X 3.75 Aluminum Cradle Beams
  • (2) 10'' x 16' Bunks with Rubber Pads
  • (2) 10" X 15' X 3.75 Aluminum Top Beams with (4) Bearing Blocks, 1 1/2" Drive Pipe, Gearbox Mount, Piling Mount Bracket, Cable Winders, Winder Bolts, and Deadman Plates
  • (2) White Covers with Hardware
  • (4) T-Brackets



PARTS LIST 25,000#:

  • (4) AMS 4000 EBD
  • (4) 7'6" x 8" x 3.75 Aluminum Top Beams
  • (2) 15' x 12 x 7"F Aluminum Cradle Beams with 4" Sheaves with Grease Zerk Bolts
  • (4) 3/8" x 30' Stainless Cables with Eye
  • (8) 1/2" x 6" Stainless Steel Lag Bolts
  • (4) White Covers with Hardware
  • (8) 834AL 22" Aluminum Chock Brackets
  • (8) 1/2" x 8 1/2" Stainless Steel Hex Bolts/Nuts/Locks/Flats
  • (4) Aluminum Heavy Duty Guidepost Brackets with (8) Tabs
  • (12) 1/2" x 2" Stainless Steel Hex Bolts/Nuts/Locks/Flats
  • (12) 1/2" x 4" Stainless Steel Carriage Bolts/Nuts/Locks/Flats
  • (2) 10'' x 16' Heavy Duty Aluminum Bunks with Rubber Pads
  • (2) Heavy Duty V-Pads
  • (4) 2' Custom Bunks
  • (2) 3/8" x 18" Cable Winder Left Hand
  • (2) 3/8" x 18" Cable Winder Right Hand
  • (4) 3 1/2" Winder Bolts
  • (4) 2" x 5' Schedule 80 Drive Pipes
  • (4) T-Brackets



PARTS LIST 30,000#:

  • (4) AMS 4000 E-Gears
  • (4) 7'6" x 8" x 3.75 Aluminum Top Beams
  • (2) 15' x 12 x 7"F Aluminum DOUBLE Cradle Beams with 4" Sheaves with Grease Zerk Bolts
  • (4) 3/8" x 30' Stainless Cables with Eye
  • (8) 1/2" x 6" Stainless Steel Lag Bolts
  • (4) White Covers with Hardware
  • (8) 834AL 22" Aluminum Chock Brackets
  • (8) 1/2" x 8 1/2" Stainless Steel Hex Bolts/Nuts/Locks/Flats
  • (4) Aluminum Heavy Duty Guidepost Brackets with (8) Tabs
  • (12) 1/2" x 2" Stainless Steel Hex Bolts/Nuts/Locks/Flats
  • (12) 1/2" x 4" Stainless Steel Carriage Bolts/Nuts/Locks/Flats
  • (2) 10' x 16' Heavy Duty Aluminum Bunks with Rubber Pads
  • (2) Heavy Duty V-Pads
  • (4) 2' Custom Bunks
  • (2) 3/8" x 18" Cable Winder Left Hand
  • (2) 3/8" x 18" Cable Winder Right Hand
  • (4) 3 1/2" Winder Bolts
  • (4) 2" x 5' Schedule 80 Drive Pipes
  • (4) T-Brackets





***OPTIONAL PARTS:

GRP2 Remote w/ Auto Stop
Custom Cradle Beams
25' Power Beams
Additional Alum Bunks
Shelf brackets
